16Mpa Small Bore Long Stroke Customized Hydraulic Cylinders

  • 1
  • 2
  • 3

Brand Name : JSRUIYA

Model Number : OEM&ODM Hydraulic Cylinder50×32×1200×1537

Certification : ISO 9000:2016

Place of Origin : Jiangsu,China

MOQ : 10pcs

Price : Negotiation

Payment Terms : Western Union, T/T, L/C

Supply Ability : 30,000 Pieces/Year

Delivery Time : 15-50 Days

Packaging Details : Wooden box, iron box

Model : custom hydrualic cylinder

Bore Size : 150mm

Rod Size : 90mm

Stroke : 703mm

Installation Distance : 1163mm

Test Pressure : 21Mpa

Working Pressure : 16Mpa

Style : OEM &ODM hydraulic cylinder

Contact Now

Customized made small bore long stroke welded hydraulic cylinder

JSRUIYA Hydraulic Cylinder specializes in the engineering and manufacture of small bore welded hydraulic cylinders for a variety of applications. Our small bore hydraulic cylinders are exceptionally rugged high-quality cylinders that are built for optimal life especially in long duty cycle applications.
JSRUIYA Cylinder’s small bore cylinder fabrication capabilities include custom engineering of a wide array of cylinder styles and types, all the way to final finish of every cylinder.
16Mpa Small Bore Long Stroke Customized Hydraulic Cylinders

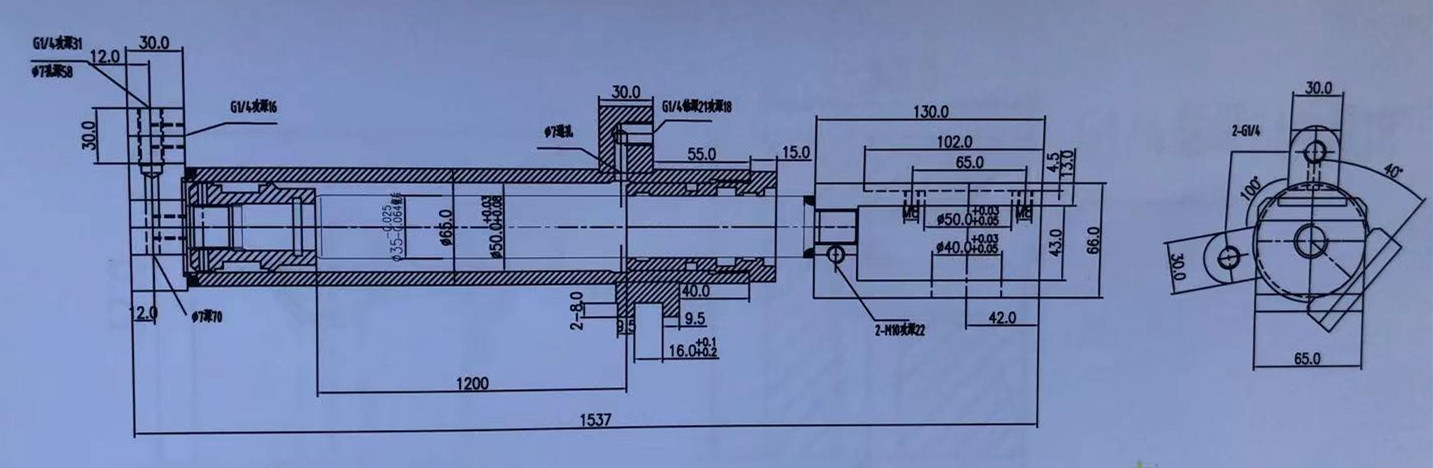

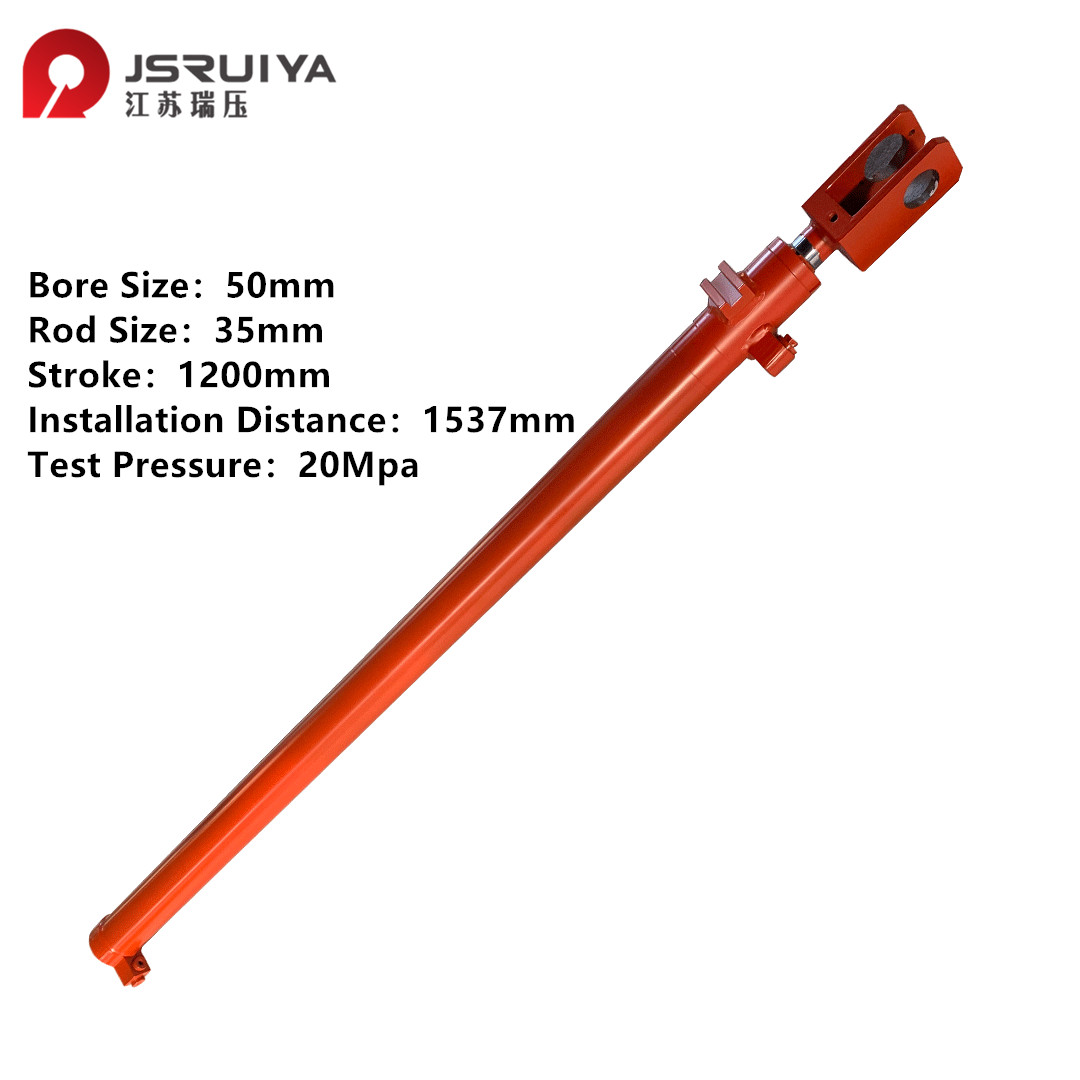

Technical Parameter:

Item Custom Welded Hydraulic Cylinder
Single Acting/Double Acting Single Acting
Duty Rating Heavy Duty
Bore Dia. 50 mm
Stroke Length 1200 mm
Rod Dia 35 mm
Installation Distance: 1537mm
Working Pressure 16Mpa
Test Pressure 20Mpa
Piston Material Ductile Iron
Tubes Precision Honed Steel
Tie Rods High Tensile
Finish Orange Red

16Mpa Small Bore Long Stroke Customized Hydraulic Cylinders

We can manufacture according to the detailed drawings you offer. If you don’t have drawings, you can tell us your specific requirements. Our engineers will design production plans to meet your exact expectations.
